The Weagree Wizard’s DocuSign integration allows the user to initiate e-signing of all contracts and schedules in the Weagree Wizard. Intermediate receipts (of opening, reading and signing) by either signatory are automatically handled by the Weagree Wizard and returned e-signed contracts are automatically stored with the correct contract entry.

DocuSign integration can be enabled and configured as follows.

Note: see section D below for help with various possible issues.

A. DOCUSIGN

To start setting up your DocuSign integration, you will need a (free) DocuSign developer account. If you do not have one already, first create one here. Then continue with the steps below.

1. Log in to DocuSign and click on Settings at the top of the page.

kb contract lifecycle management api integrations docusign 1 1 DocuSign integration

2. Click Apps and Keys beneath Integrations on the left-hand side of the page.

kb contract lifecycle management api integrations docusign 2 DocuSign integration

3. Click Add app and integration key.

kb contract lifecycle management api integrations docusign 3 DocuSign integration

4. The pop-up Add Integration Key will appear. Fill in the App Name field (you are free to choose any name).

5. Click Create app.

kb contract lifecycle management api integrations docusign 4 DocuSign integration

6. The settings page for the newly created app will load. Check if User Application is set to Authorization Code Grant.

7. In the Authentication section, click Generate RSA.

kb contract lifecycle management api integrations docusign 5 DocuSign integration

8. The pop-up RSA Keypair will appear. Click the copy icon next to the private key.

kb contract lifecycle management api integrations docusign 6 DocuSign integration

9. The private key will need to be saved as a PPK file. A simple flat-text editor such as Windows’ Notepad will suffice.

a. Open the editor and paste the copied text into it (including “—–BEGIN RSA PRIVATE KEY—–” and “—–END RSA PRIVATE KEY—–“).
b. Save the document by inserting “[document name].ppk” into the file name field, with quotes (e.g. “DocuSign key.ppk”).

Note: If you are using an editor that supports text formatting (e.g. Microsoft Word), ensure that the selected file type produces flat, non-formatted text (e.g. TXT). Otherwise, saving it with a PPK extension as described above will not work as intended.

kb contract lifecycle management api integrations docusign 7 DocuSign integration

10. In the Additional settings section, click Add URI.

11. In the Redirect URIs field that appears, insert a link with the following format:

https://[portalname].weagree.com/signtransaction.docusign

For [portalname], substitute the first part of your Weagree portal’s address (e.g. “cycling” if the full address is “https://cycling.weagree.com/”).

12. Click Save.

kb contract lifecycle management api integrations docusign 8 DocuSign integration

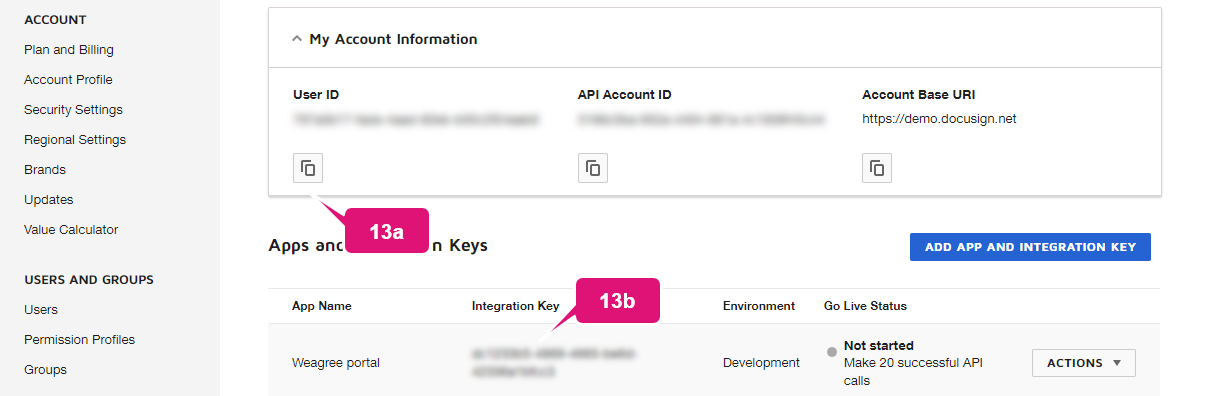

13. The main Apps and Keys page will load again. At this point, it would be useful to copy and paste the following to a temporary document as they will be needed a little later:

a. User ID
b. Your app’s Integration Key

kb contract lifecycle management api integrations docusign 9 DocuSign integration



B. WEAGREE WIZARD

Having set up the DocuSign app, the Weagree Wizard must be configured to connect to it.

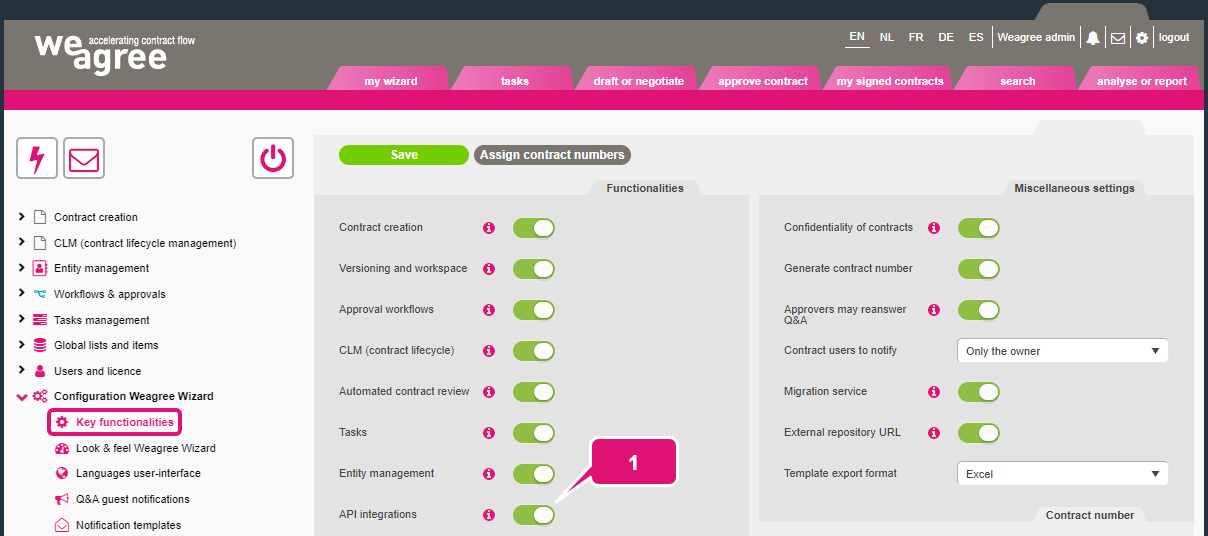

1. First, ensure that API integrations are enabled. If you open the Configuration Weagree Wizard item on the Administrator page, and no subitem API integrations appears in the list on the left, they are currently disabled. In that case, open the subitem Key functionalities. On the main part of the screen, move the API integrations slider to the right (i.e. “ON”) position and click Save.

kb contract lifecycle management api integrations docusign 10 DocuSign integration

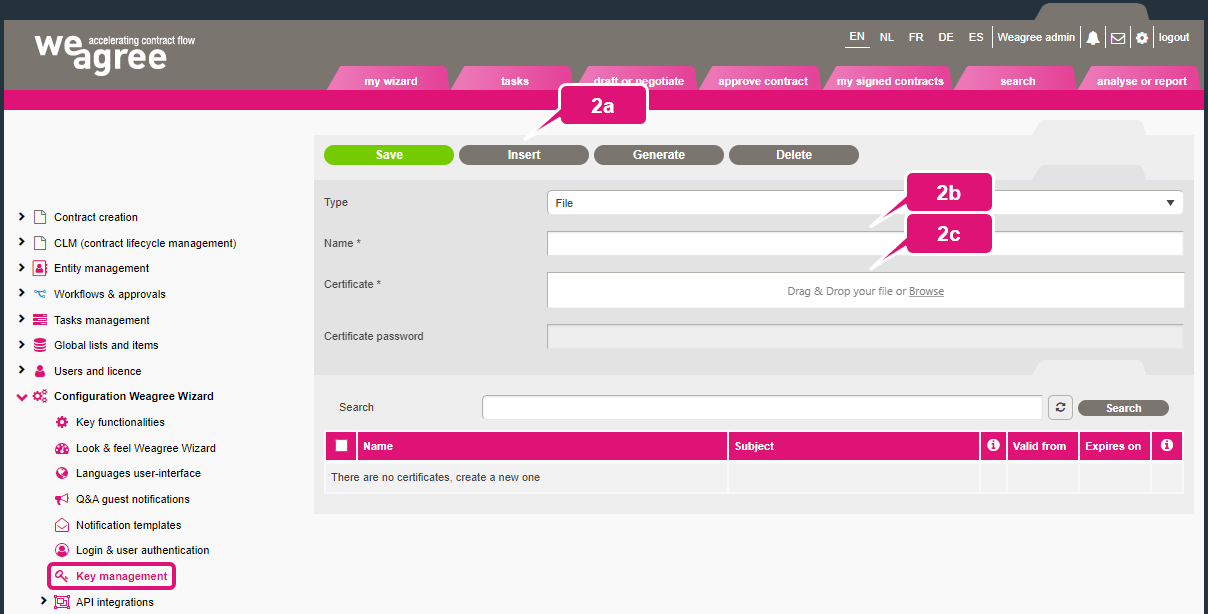

2. Open the Key management subitem to upload the PKK file you created earlier:

a. Click Insert.
b. Insert a name (this does not have to match the file name).
c. Select the file from your hard drive or network or drag-and-drop it.
Note: in the file browser, the default filter might hide PPK files. In that case, change the dropdown filter to show all files.
d. Click Save.

kb contract lifecycle management api integrations docusign 11 DocuSign integration

3. Open the API integrations subitem (that has now appeared) to configure the DocuSign integration:

a. Select DocuSign from the plugin list. Its settings will be displayed on the right.
b. Set the top switch to the “ON” position to activate DocuSign integration. After activation, a grey checkmark will appear in the plugin list’s right column.
Note: ensure that no other e-signing plugin has been activated. If so, switch it “OFF” and click Save. Continue with the DocuSign settings.
c. Set the second switch to the “ON” position to activate DocuSign’s e-signing functionality (other APIs may have multiple, independent functionalities).
d. For ClientID, insert the DocuSign app’s Integration Key.
e. For AuthServer, insert: account-d.docusign.com
f. Click the magnifier icon to select the uploaded PPK file.
g. For ImpersonatedUserID, insert your DocuSign developer app’s User ID.
h. Click Save.

kb contract lifecycle management api integrations docusign 12 DocuSign integration



CAUTHENTICATION

1. To finalise the connection, a one-time authentication procedure must be followed. This requires accessing a specific internet address. It must use this format:

https://account-d.docusign.com/oauth/auth?response_type=code&scope=signature%20impersonation&client_id=[integrationkey]&redirect_uri=https%3A%2F%2F[portalname].weagree.com%2Fsigntransaction.docusign

a. For [integrationkey], substitute the DocuSign app’s Integration Key (without brackets).
b. For [portalname], as before, substitute the first part of your Weagree portal’s address (again without brackets).
c. Insert the resultant URL into your browser’s navigation bar and hit Enter (Return).

2. Should DocuSign produce an error when inserting the URL, doublecheck these criteria:

a. Authorization Code Grant has been selected for the DocuSign app.
b. The redirect URI added to the DocuSign app is correct. Ensure that it begins with “https://” and ends with “signtransaction.docusign” (no period or other character at the end).
c. There are no typos in the inserted URL (e.g. “http” instead of “https” or a missing % in the embedded URI at the end).
d. The inserted URL’s response_type is “code”.

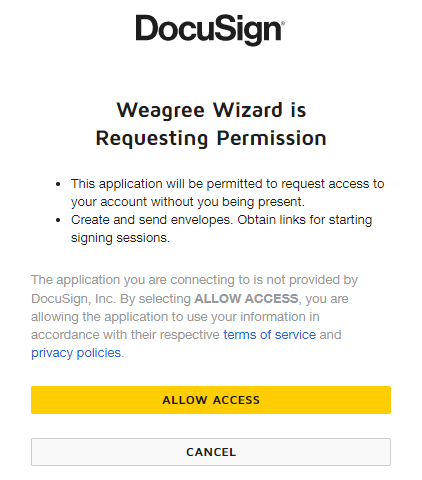

3. If all previous steps have been correctly executed, you will be prompted to (login and) grant permission. (Login and) click Allow access.

kb contract lifecycle management api integrations docusign 13 DocuSign integration

4. The DocuSign integration is now set up for the developer account. DocuSign requires that at least 20 successful API calls are made to the newly configured app before it can go live. You will therefore need to e-sign a number of (test) documents before the app’s settings can be transferred to your DocuSign’s production environment. When going live, the AuthServer field will need to be changed to point to your production account’s data center location. The other settings may remain as they are.

You will also need to grant authentication once more, this time for the designated regular (i.e. non-developer) DocuSign account. Go through step 1 above again, but this time use the following format (note the slightly different subdomain: “account.docusign.com”):

https://account.docusign.com/oauth/auth?response_type=code&scope=signature%20impersonation&client_id=[integrationkey]&redirect_uri=https%3A%2F%2F[portalname].weagree.com%2Fsigntransaction.docusign

For more information on going live, see the DocuSign Go-Live page.



D. TROUBLESHOOTING

If you have followed the above instructions, your DocuSign integration should be operating correctly. However, you may still encounter one of the following problems.

1Wrong name and e-mail address in notifications
If e-mail notifications sent by DocuSign appear to be sent by or on behalf of the wrong person (or if this will no longer be the correct person), there are two ways to solve this from DocuSign administrator’s Settings page.

a. If your own DocuSign administrator account is being used to send notifications:

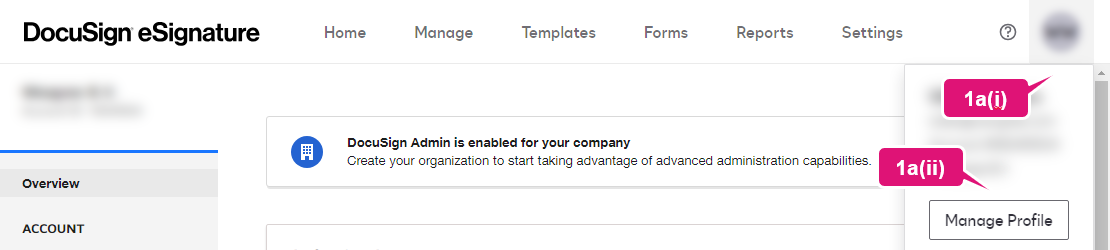

i. Click on your profile icon in the top-right corner.
ii. Click Manage Profile.

kb contract lifecycle management api integrations docusign 14 DocuSign integration

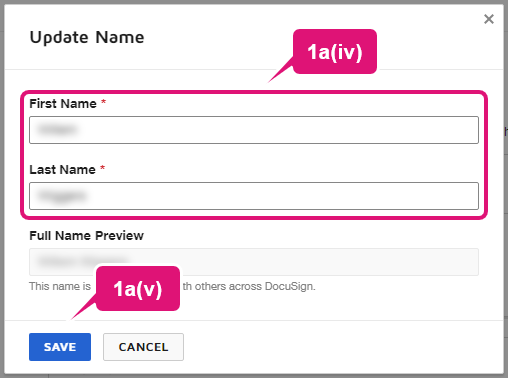

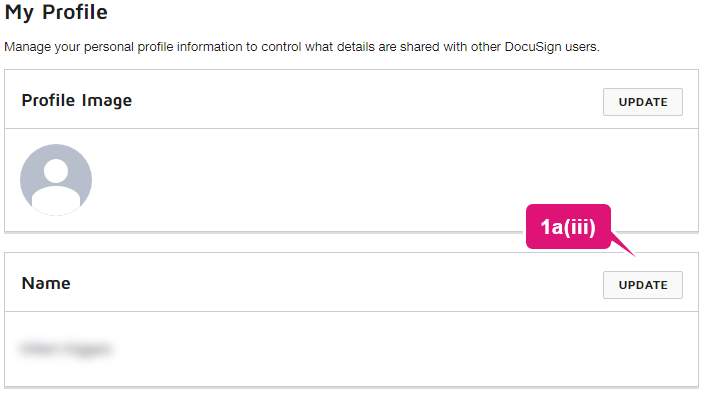

iii. Click Update for Name.
iv. Enter the correct name.
v. Click Save.
vi. Repeat steps iii through v for Email address.

kb contract lifecycle management api integrations docusign 15 DocuSign integration    kb contract lifecycle management api integrations docusign 16 DocuSign integration

b. If another user’s account is being used to send notifications:

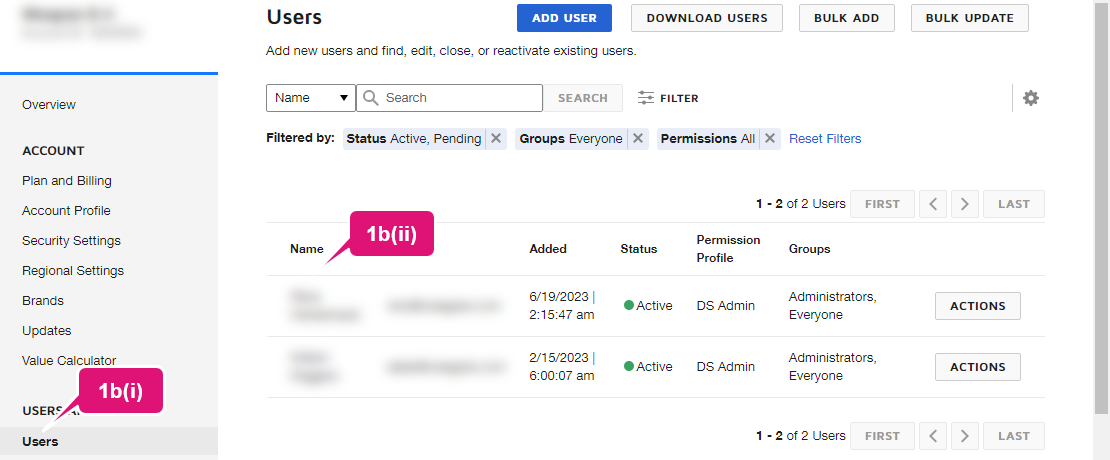

i. Click Users beneath Users and Groups on the left-hand side of the page.
ii. Find the user whose account (details) should be used instead and click on their name.

kb contract lifecycle management api integrations docusign 17 DocuSign integration

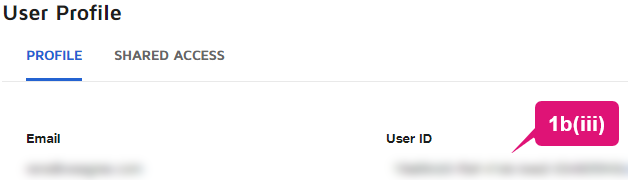

iii. Select and copy their User ID.

kb contract lifecycle management api integrations docusign 18 DocuSign integration

iv. Go to the Weagree Wizard and navigate to Configuration Weagree Wizard > API integrations on the Administrator page (see section B above).
v. Select DocuSign from the plugin list.
vi. Replace the ImpersonatedUserID with the copied User ID.
vii. Click Save.
viii. Instruct the new user to provide authentication as described in section C above.

Note: you will always have to provide authentication once whenever you change the User ID in the Weagree Wizard, unless that User ID has been authenticated before.

2The envelope (e-signing invitation) has expired
It may be that DocuSign envelopes expire too quickly, preventing the e-signing process from being completed. There are three possible solutions:

a. Initiate e-signing for the designated document once more in Weagree. This will start an entirely new e-signing cycle; the previous attempt will remain incomplete.
b. From within DocuSign:

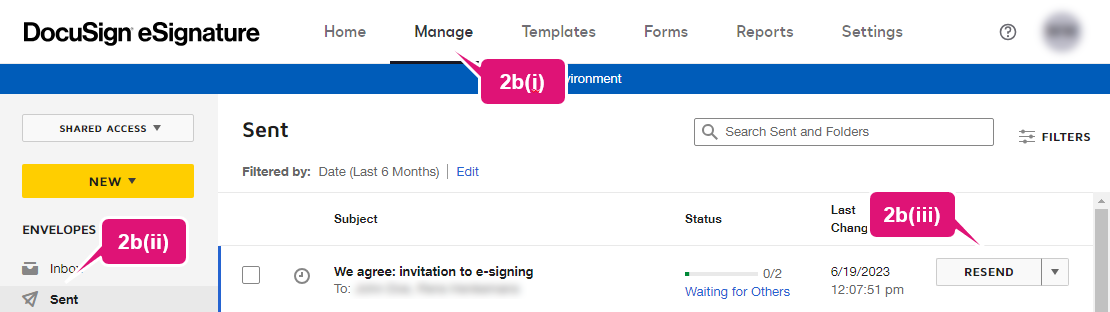

i. Open the Manage page.
ii
. Click Sent beneath Envelopes on the left-hand side of the page.
iii. Click Resend next to the envelope in question.

kb contract lifecycle management api integrations docusign 19 DocuSign integration

c. To prevent future expirations, again from within DocuSign:

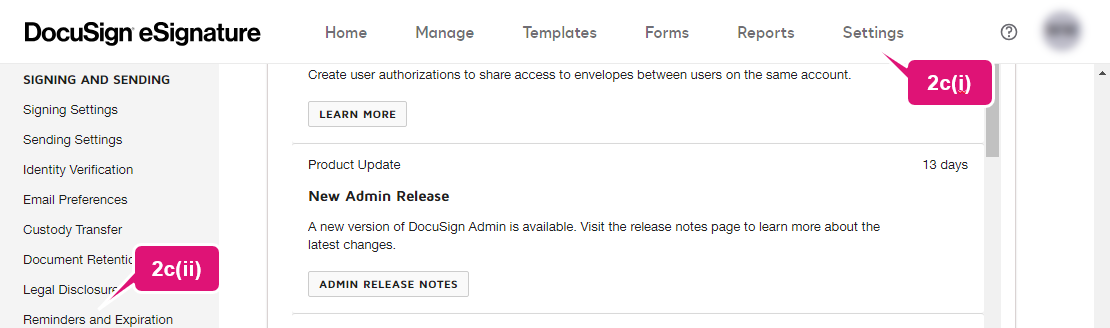

i. Open the Settings page.
ii. Click Reminders and Expiration beneath Signing and Sending on the left-hand side of the page.

kb contract lifecycle management api integrations docusign 20 DocuSign integration

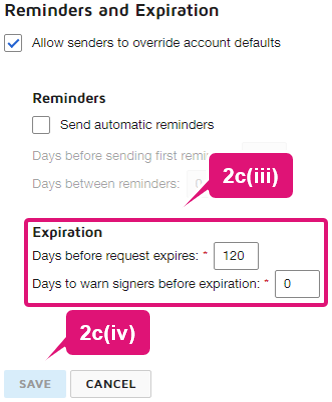

iii. Change the settings as desired.
iv. Click Save.

Note: when changing expiration settings, be aware that this will affect all DocuSign apps used by your DocuSign account.

kb contract lifecycle management api integrations docusign 21 DocuSign integration

Should there still be basic issues that prevent e-signing (e.g. no notifications being sent or signed documents automatically returning to the Weagree Wizard), please contact support@weagree.com. For anything which cannot be configured within the Weagree Wizard, see DocuSign’s support pages.
